Overview

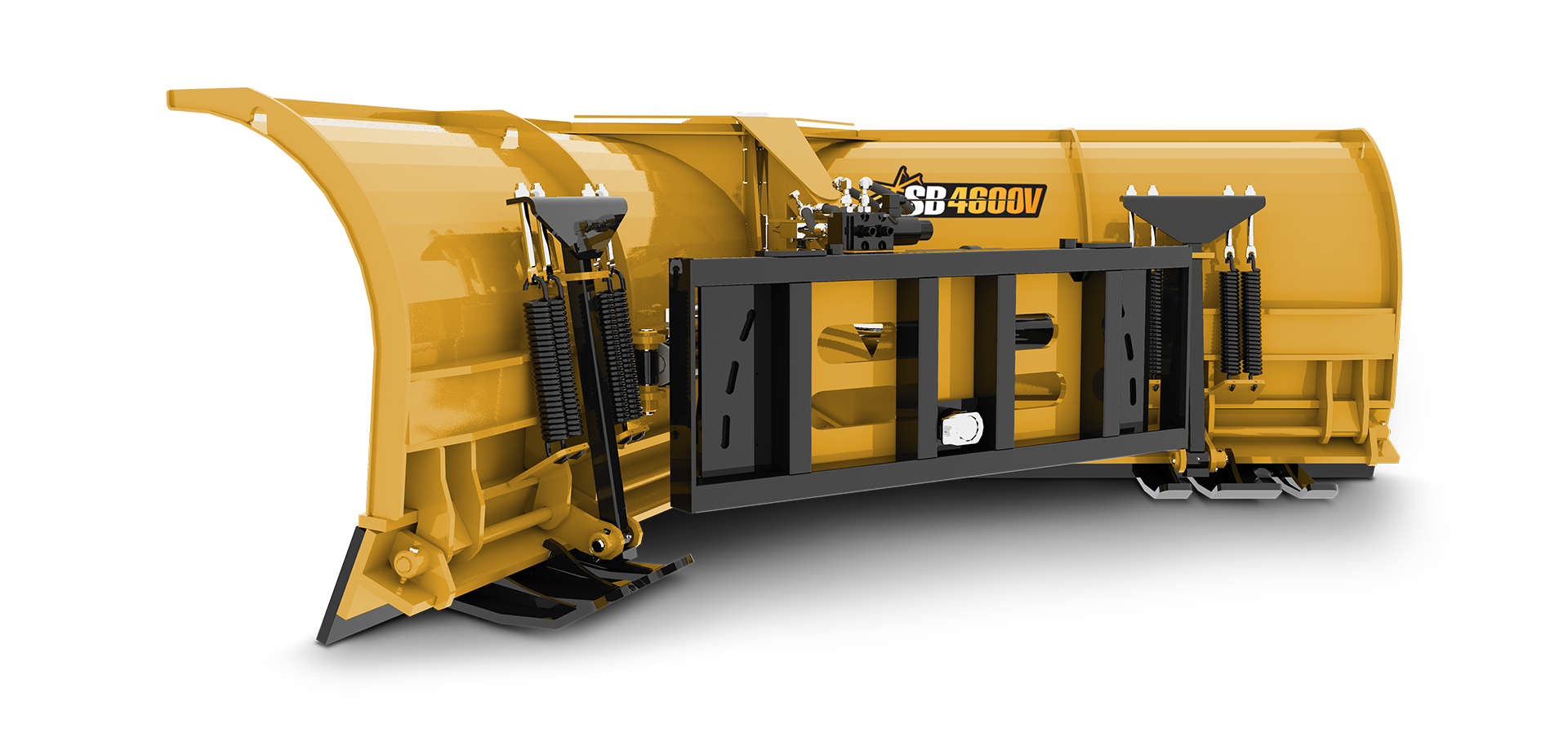

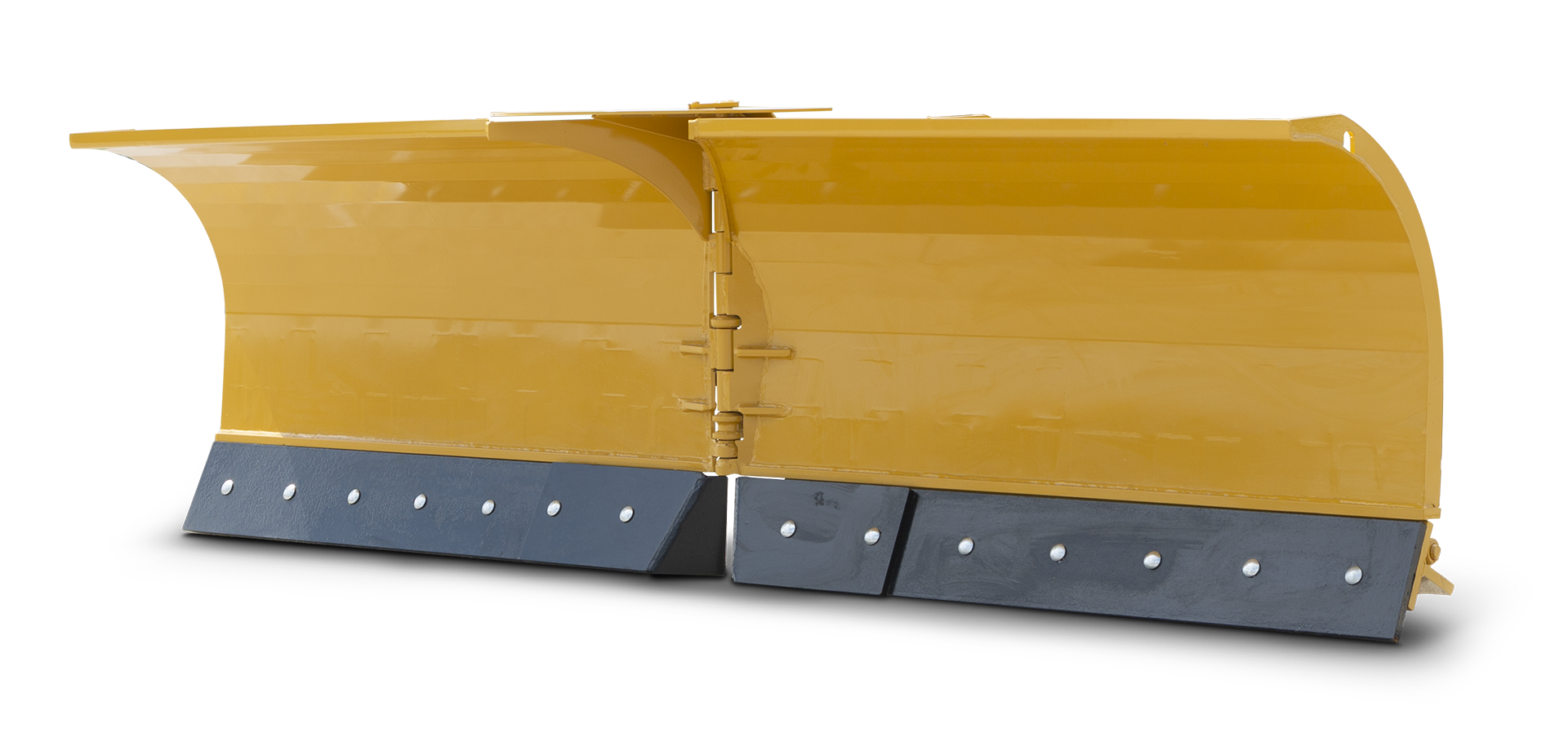

The 4600 Series Six-Way Blade is sized for skid steers, compact wheel loaders and ag tractors, from 8,500 to 25,000 lbs. operating weight. This hydraulic six-way V blade is ideal for agricultural properties and trail ways in commercial parks and rec applications.

SB4600V

The 4600 Series Six-Way Blade is sized for skid steers, compact wheel loaders and ag tractors, from 8,500 to 25,000 lbs. operating weight. This hydraulic six-way V blade is ideal for agricultural properties and trail ways in commercial parks and rec applications.

Specifications

Part # Approx. Weight (LBS.) Clearing Width Straight Clearing Width Veed Clearing Width Scooped Road Clearance Angled Mouldboard Height Max Operating Weight (LBS.)
SB4600V08 1,635 96" 84" 75" 83" 34" 25,000
SB4600V09 1,720 108" 94" 85" 93" 34" 25,000
SB4600V10 1,805 120" 103" 95" 103" 34" 25,000
SB4600V12 1,975 144" 113" 105" 123" 34" 25,000

Features

More +
  • 2 Year Warranty Feature

    2 Year Warranty

    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.

  • Replaceable, Reversible Cutting Edge Feature

    Replaceable, Reversible Cutting Edge

    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

    Note: Replace endcaps along with cutting edges to prevent streaming.

    Currently not available on wings.

    (non Edge Flex only)

  • Spring Trip Cutting Edge Feature

    Spring Trip Cutting Edge

    Allows cutting edge to trip back if struck by hidden object limiting damage.

  • 35° Angle with Crossover Relief Valve Protection Feature

    35° Angle with Crossover Relief Valve Protection

    Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.

  • Reversible 3/4" Hardox 450 Cutting Edge Feature

    Reversible 3/4" Hardox 450 Cutting Edge

    Features tough Hardox 450, measuring at 3/4" this reversible cutting edge lasts even longer.

  • Lateral Float Feature

    Lateral Float

    Allows blade to follow ground contours for better clearing performance.

  • Single Electric Selector Valve Feature

    Single Electric Selector Valve

    Single Electric Selector Valve. Allows the control of each side of the Six-Way blade to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.

  • High Tensile AR400 Skid Shoes Feature

    AR400 Skid Shoes

    Includes abrasion and wear-resistant AR400 skid shoes.

  • Quick Attach Frame Kits Available Feature

    Quick Attach Frame Kits

    Quick attach frame kits available for most makes. Call dealer for details.
