Overview

The 3500X Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 6,000 to 10,000 lbs. operating weight. With a hydraulic activated expandable mouldboard, this pusher is ideal for commercial snow clearing where tight quarters call for infinite width adjustment to get the job done.

Image of H L A swoop icon

3530W

⯈
Image of H L A swoop icon

4500

⯈
Image of H L A swoop icon

5500

⯈
Image of H L A swoop icon

5505

⯈
Image of H L A swoop icon

6500

⯈

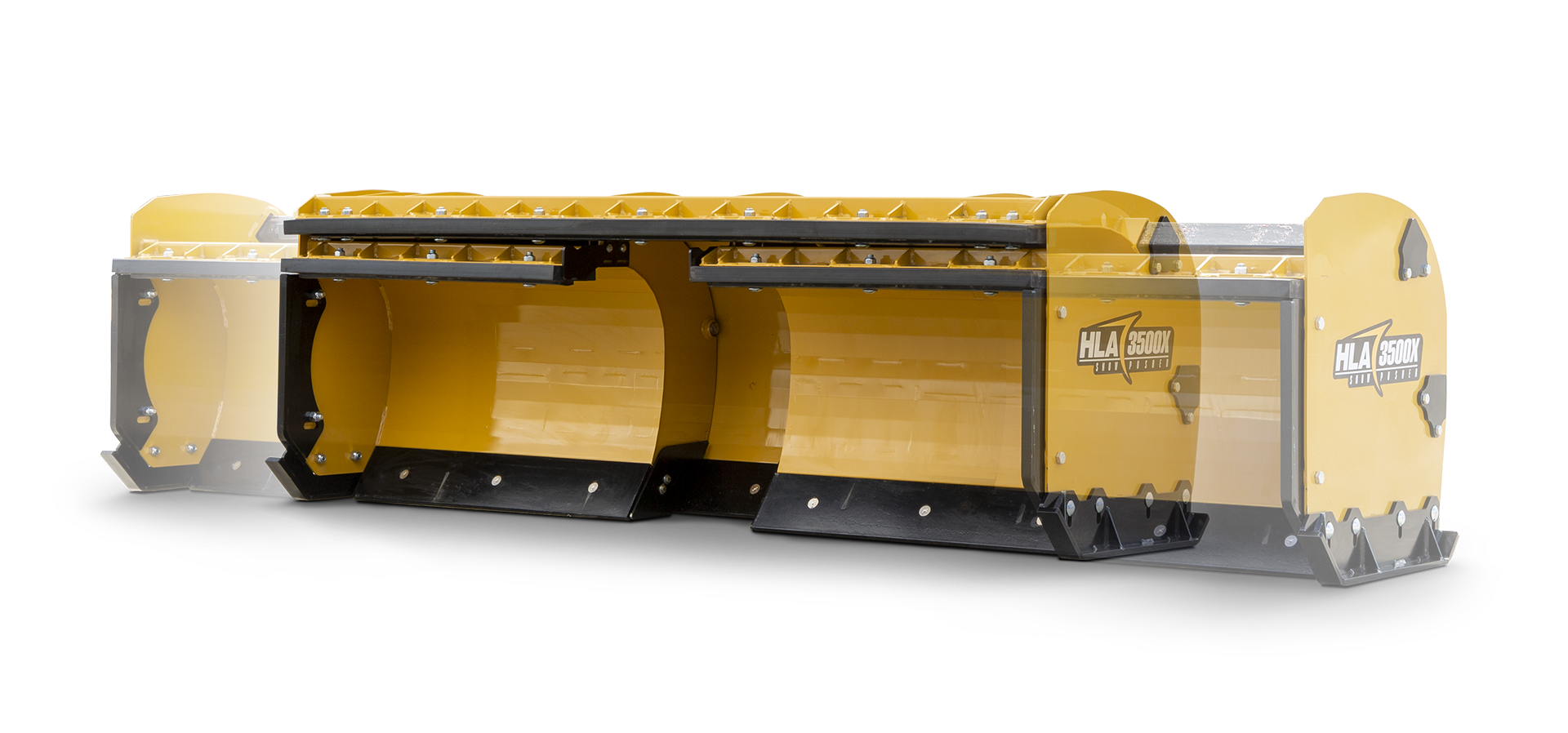

3500X SnowPusher

The 3500X Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 6,000 to 10,000 lbs. operating weight. With a hydraulic activated expandable mouldboard, this pusher is ideal for commercial snow clearing where tight quarters call for infinite width adjustment to get the job done.

Specifications

Part # Approx. Weight (LBS.) Length (Closed / Open) Mouldboard Height Fixed End Plate Depth Max Operating Weight (LBS.)
SP3500X610 1,525 72" / 120" 24" 16" 10,000
SP3500X711 1,605 84" / 132" 24" 16" 10,000
SP3500X812 1,690 96" / 144" 24" 16" 10,000

Features

More +
  • 2 Year Warranty Feature

    2 Year Warranty

    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.

  • Expandable Pusher Feature

    Expandable Pusher

    The pusher is able to expand and contract to either increase or decrease the clearing width of the pusher, giving you more control over where you use it.

  • Flow Divider Valve Feature

    Flow Divider Valve

    Ensures balanced left and right cylinder performance on the inner mouldboard when changing clearing width.

  • Trip Cutting Edge Feature

    Spring Trip Cutting Edge

    Allows cutting edge to trip back if struck by hidden object limiting damage.

  • Compression Springs for Trip Feature

    Compression Springs for Trip

    The compression springs for trip can be adjusted for tension.

  • Fixed Skid Shoes Feature

    High Tensile AR400 Adjustable Steel Skidbars

    AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.

  • Built In Back Drag Feature

    Built In Back Drag

    Equipped with a built in back drag, this feature is ideal for back dragging away from doors and loading docks for an even cleaner finish.

  • Inner Mouldboard Feature

    Inner Mouldboard

    The inner mouldboard slides on the support shaft, and hydraulically expand up to 48" wider from closed position.
