3230W

⯆

Overview

The 3230W SnowWing Series is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, to combine the functionality of both angle blades and box pushers, it provides unparalleled efficiency and productivity for commercial contractors.

Image of H L A swoop icon

4203W

⯈
Image of H L A swoop icon

4205W

⯈
Image of H L A swoop icon

5203W

⯈
Image of H L A swoop icon

5205W

⯈
Image of H L A swoop icon

6205W

⯈

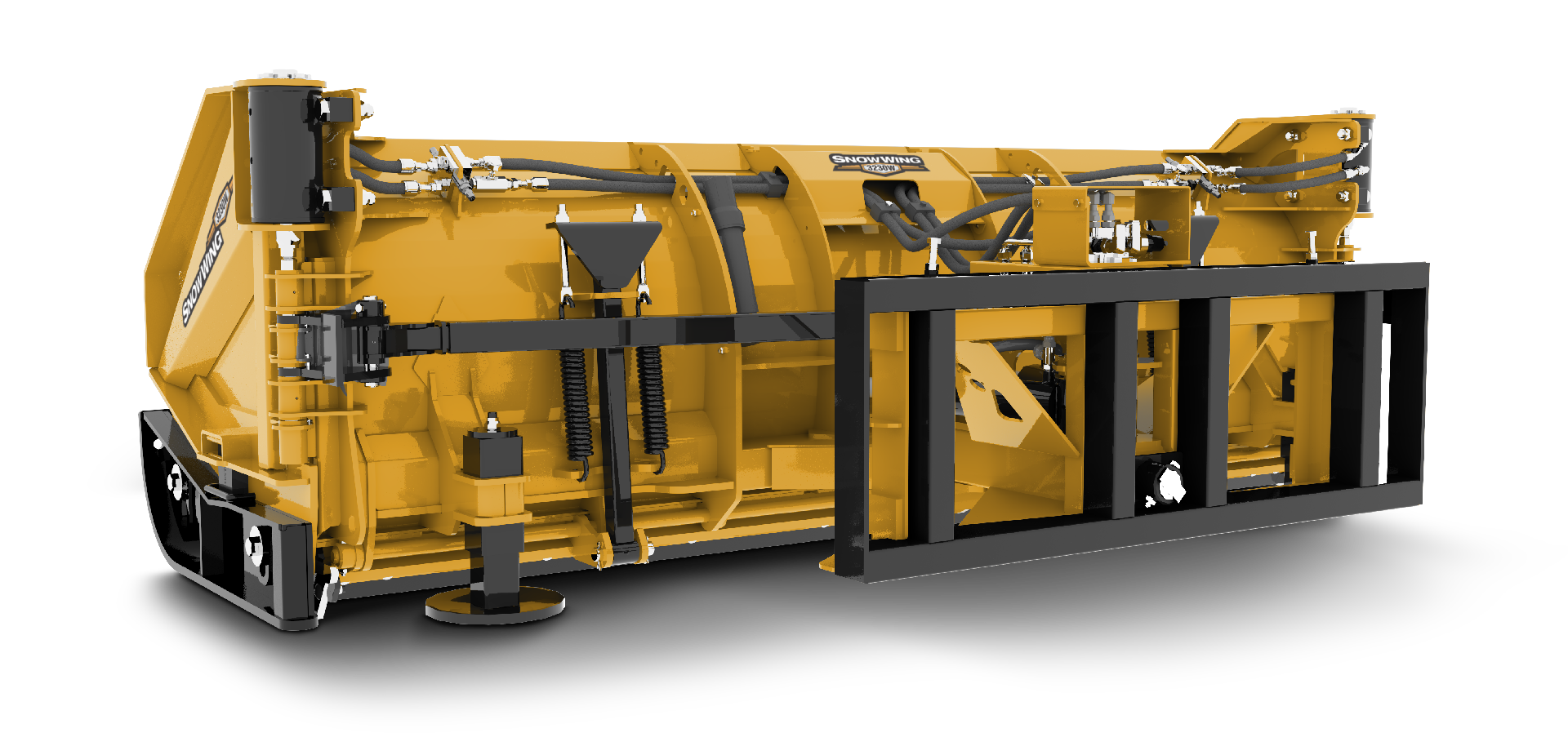

3230W SnowWing

The 3230W SnowWing Series is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, to combine the functionality of both angle blades and box pushers, it provides unparalleled efficiency and productivity for commercial contractors.

Specifications

Part # Approx. Weight (LBS.) Clearing Width Closed (in.) Clearing Width Open (in.) Overall Road Width (Angled) (in.) Snow Clearing Width (Angled) (in.) Wing Width (Each) Mouldboard Height Max Operating Weight (lbs.)
SB3230W611 1,370 72 132 70 107 30" 30" 13,000
SB3230W712 1,450 84 144 80 117 30" 30" 13,000
SB3230W813 1,530 96 156 90 127 30" 30" 13,000
SB3230W914 1,600 108 168 100 137 30" 30" 13,000
SB3230W1015 1,670 120 180 110 147 30" 30" 13,000

Features

More +
  • 2 Year Warranty Feature

    2 Year Warranty

    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.

  • 180° Rotation Feature

    180° Rotation

    Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation.

  • 35° Angle with Crossover Relief Valve Protection Feature

    35° Angle with Crossover Relief Valve Protection

    Relief Valve Feature Video Link

    Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.

  • Floating End Plate Edge Feature

    Floating End Plate Edge

    Endplate Wing Feature Video Link

    Floating endplate edges follow surface contour for confident snow clearing.

  • Lateral Float Feature

    Lateral Float

    Oscillating Mount Feature Video Link

    Allows blade to follow ground contours for better clearing performance.

  • Mouldboard Profile Feature

    Mouldboard Profile

    Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.

  • Replaceable, Reversible Cutting Edge Feature

    Replaceable, Reversible Cutting Edge

    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

    Note: Replace endcaps along with cutting edges to prevent streaming.

    Wing edges are not reversible.

    (non Edge Flex only)

  • Rotary Actuators Feature

    Rotary Actuators - PATENTED

    Rotary Actuator Feature Video Link

    These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place.

  • Adjustable Skid Shoes Feature

    Adjustable Skid Shoes

    Allows you to set cutting depth for optimum performance and prolonged cutting edge life.

  • Spring Trip Cutting Edge Feature

    Spring Trip Cutting Edge

    Spring Trip Feature Video Link

    Allows cutting edge to trip back if struck by hidden object limiting damage.

  • Tire Protection System Feature

    Tire Protection System - PATENTED

    Tire Protection System Feature Video Link

    Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment.

  • Double Electric Selector Valve Feature

    Double Electric Selector Valve

    Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.

  • Quick Attach Frame Kits

    Quick Attach Frame Kits

    Quick attach frame kits are available for most makes. Call dealer for details.
