Overview

The 3530W Series SnowPusher is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, this pusher is ideal for both containment pushing, and back dragging in the reverse-box position.

Image of H L A swoop icon

4500

⯈
Image of H L A swoop icon

5500

⯈
Image of H L A swoop icon

5505

⯈
Image of H L A swoop icon

6500

⯈

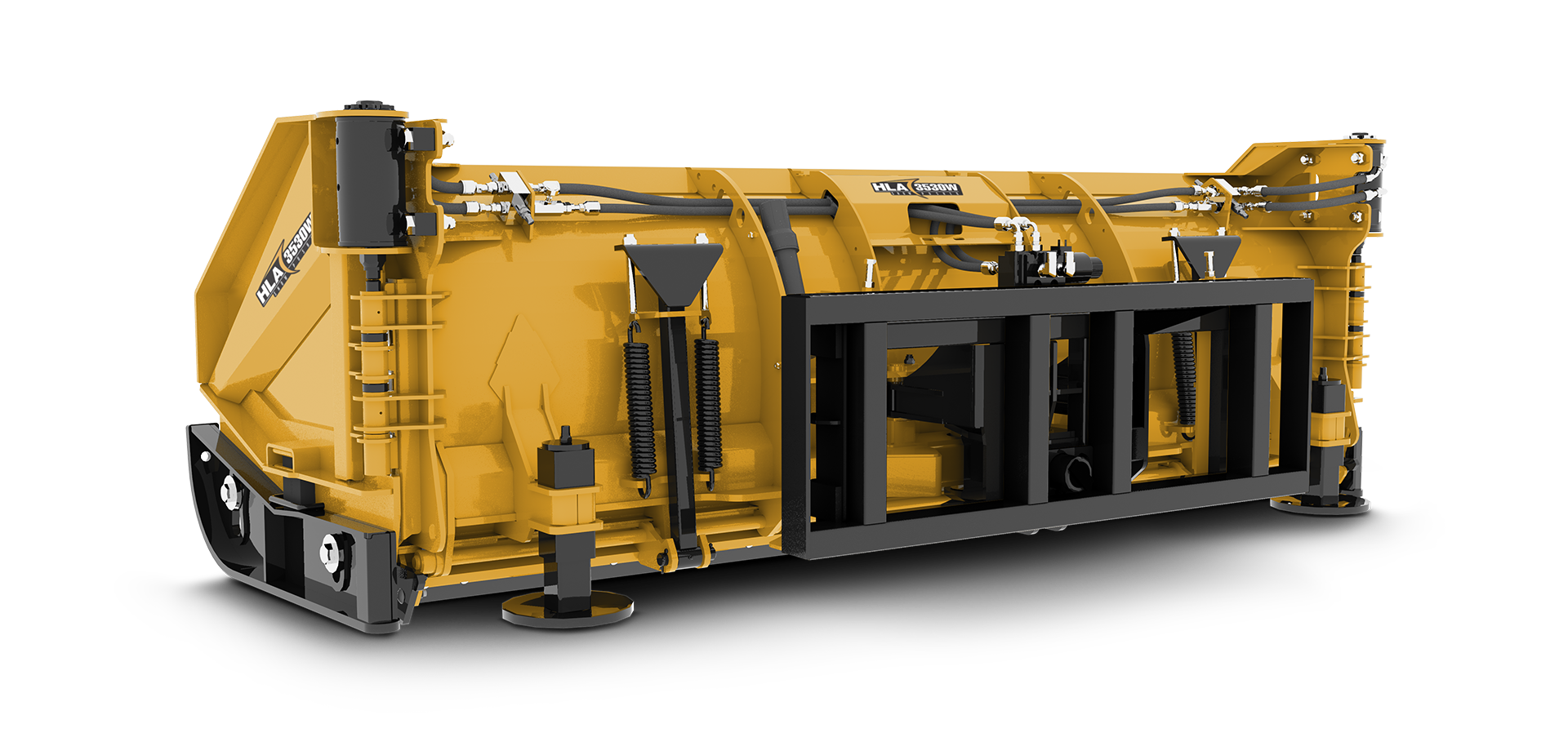

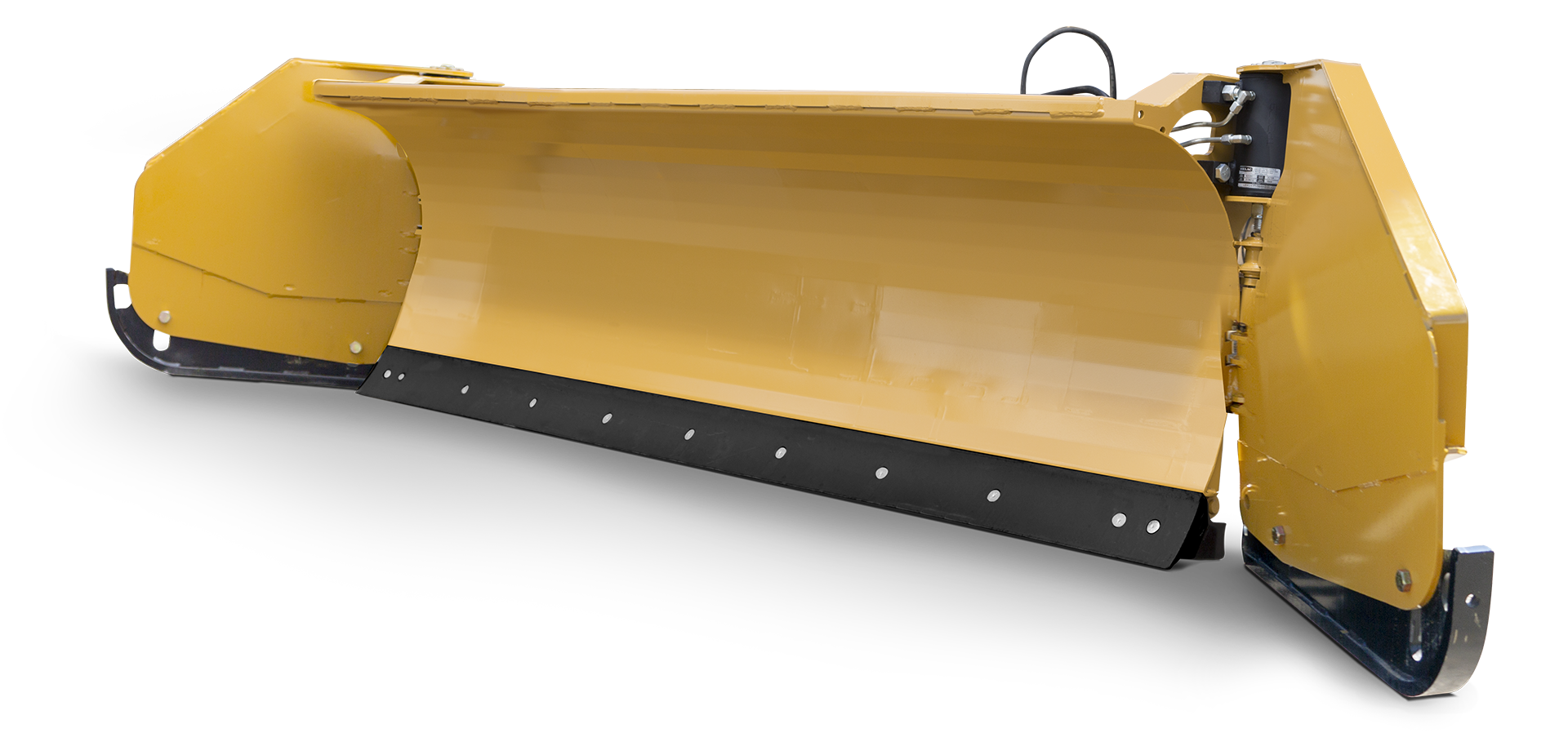

3530W SnowPusher

The 3530W Series SnowPusher is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, this pusher is ideal for both containment pushing, and back dragging in the reverse-box position.

Specifications

Part # Cutting Edge Approx. Weight (LBS.) Length (Closed / Open) Mouldboard Height Max Operating Weight (LBS.)
SP3530W611 Standard 1,185 72" / 132" 30" 13,000
SP3530WEF2611 Edge Flex 1,240 72" / 132" 30" 13,000
SP3530W712 Standard 1,260 84" / 144" 30" 13,000
SP3530WEF2712 Edge Flex 1,335 84" / 144" 30" 13,000
SP3530W813 Standard 1,340 96" / 156" 30" 13,000
SP3530WEF2813 Edge Flex 1,425 96" / 156" 30" 13,000
SP3530W914 Standard 1,410 108" / 168" 30" 13,000
SP3530WEF2914 Edge Flex 1,515 108" / 168" 30" 13,000
SP3530W1015 Standard 1,485 120" / 180" 30" 13,000
SP3530WEF21015 Standard 1,605 120" / 180" 30" 13,000

Features

More +
  • 2 Year Warranty Feature

    2 Year Warranty

    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.

  • Lateral Float Feature

    Lateral Float

    Oscillating Mount Feature Video Link

    Allows blade to follow ground contours for better clearing performance.

  • Replaceable, Reversible Cutting Edge Feature

    Replaceable, Reversible Cutting Edge

    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

    Note: Replace endcaps along with cutting edges to prevent streaming.

    Currently not available on wings.

    (non Edge Flex only)

  • Adjustable Skid Shoes Feature

    Adjustable Skid Shoes

    Allows you to set cutting depth for optimum performance and prolonged cutting edge life.

  • Rotary Actuators Feature

    Rotary Actuators - PATENTED

    Rotary Actuator Feature Video Link

    These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place.

  • Spring Trip Cutting Edge Feature

    Spring Trip Cutting Edge

    Spring Trip Feature Video Link

    Allows cutting edge to trip back if struck by hidden object limiting damage.

  • Single Electric Selector Valve Feature

    Single Electric Selector Valve

    Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.
