Overview

The 3500 Series Snow Pusher is sized for skid steers, compact wheel loaders and ag tractors, from 5,500 to 15,000 lbs. operating weight. This pusher is ideal for agricultural property maintenance and commercial snow clearing alike.

3500X

⯈

3530W

⯈

4500

⯈

5500

⯈

5505

⯈

6500

⯈

Placeholder image space for when the 3D viewer is active

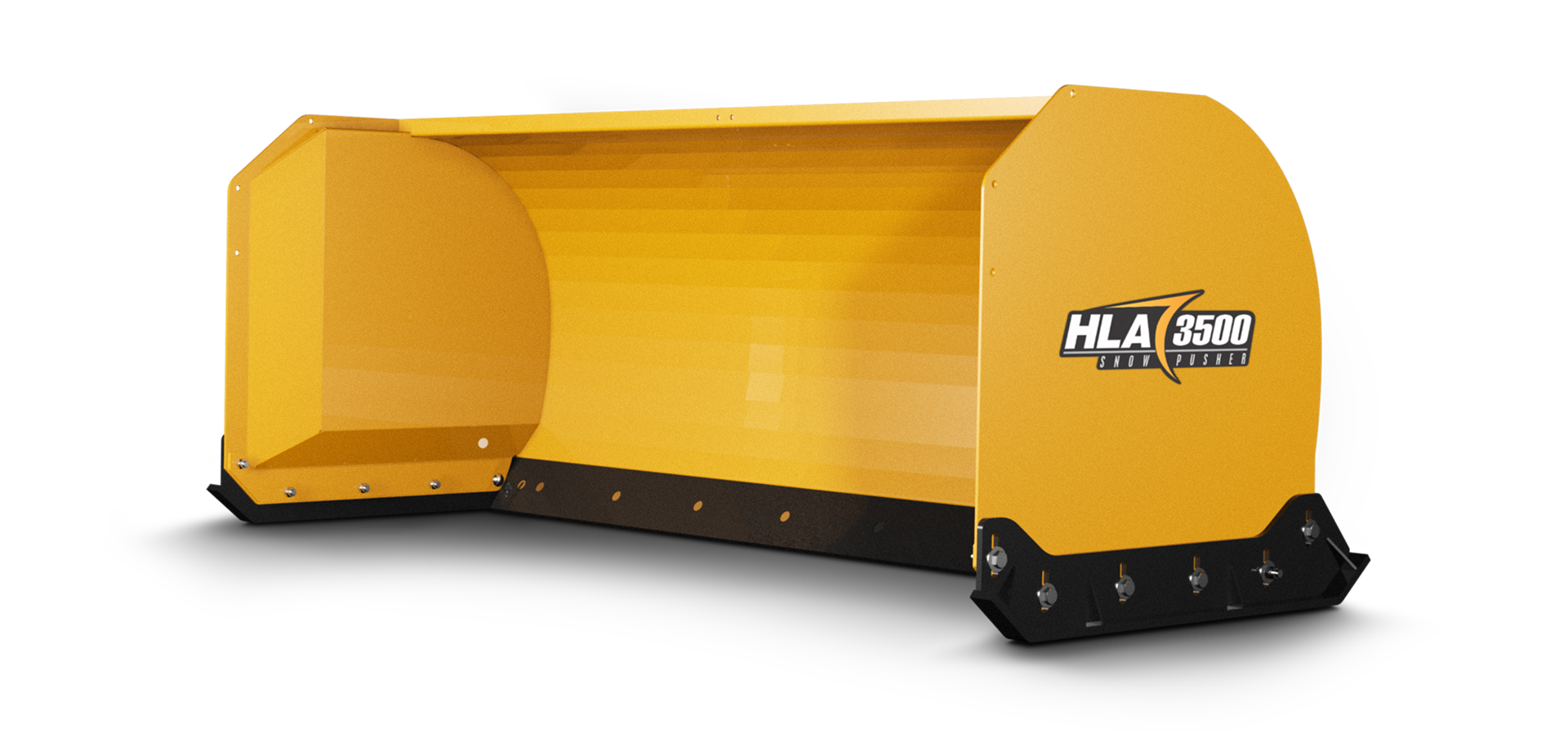

3500 SnowPusher

Specifications

Part #	Cutting Edge	Approx. Weight (LBS.)	Depth	Length	Mouldboard Height	Max Operating Weight (LBS.)
SP350007	Steel	1,155	36"	84"	38"	15,000
SP3500R07	Rubber	1,155	36"	84"	38"	15,000
SP350008	Steel	1,225	36"	96"	38"	15,000
SP3500R08	Rubber	1,225	36"	96"	38"	15,000
SP350009	Steel	1,300	36"	108"	38"	15,000
SP3500R09	Rubber	1,300	36"	108"	38"	15,000
SP350010	Steel	1,370	36"	120"	38"	15,000
SP3500R10	Rubber	1,370	36"	120"	38"	15,000
SP350012	Steel	1,540	36"	144"	38"	15,000
SP3500R12	Rubber	1,540	36"	144"	38"	15,000

Features

More +

2 Year Warranty

Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
Replaceable, Reversible Cutting Edge

Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
Double Sidewall

Welded double sidewalls eliminates bulky braces and reduces material build-up, leaving only smooth clean lines inside.
High Tensile AR400 Adjustable Steel Skidbars

AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.

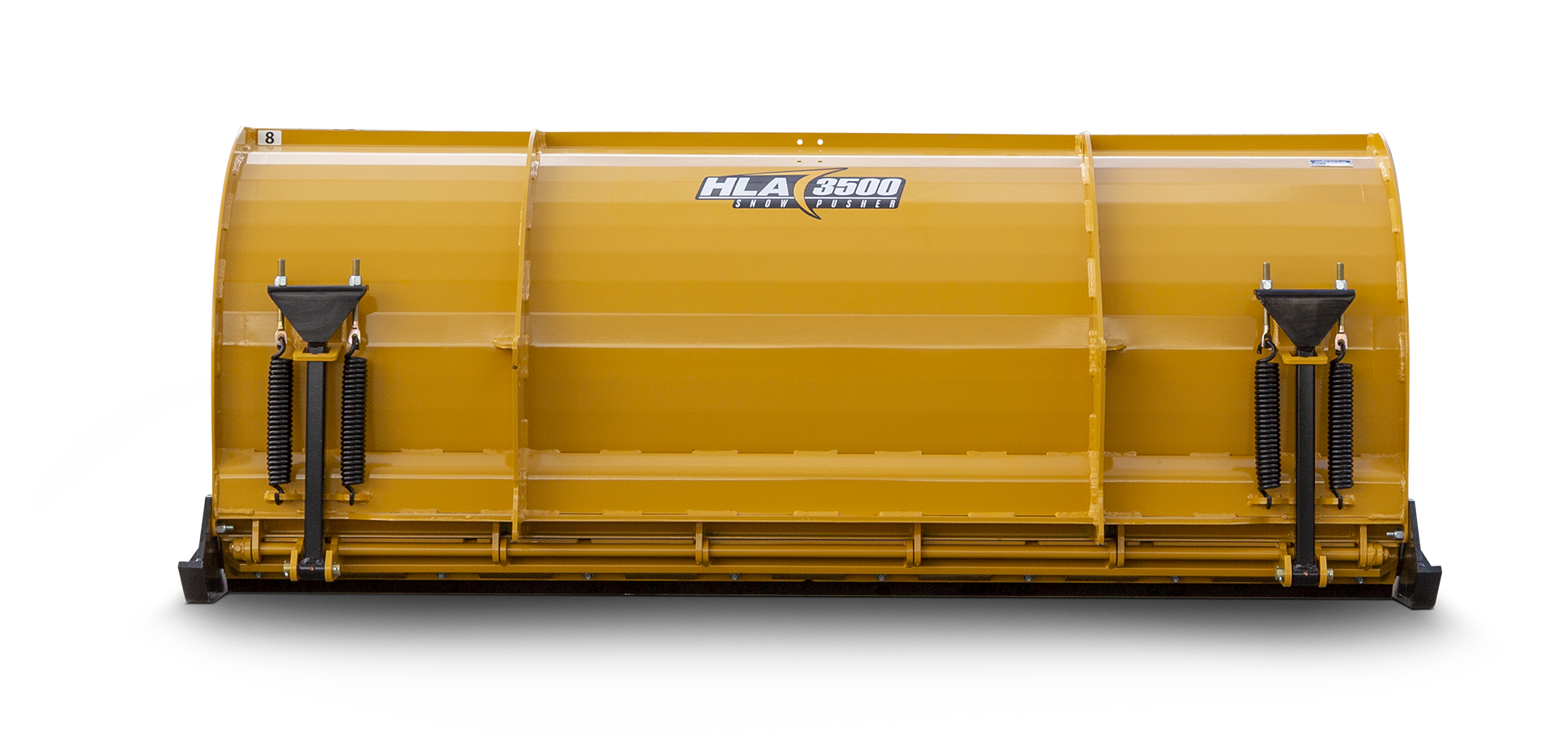

Spring Trip Cutting Edge

Allows cutting edge to trip back if struck by hidden object limiting damage.

Options

More +

Carbide Cutting Edges

Carbide edges are designed for heavy commercial use. This non-reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
NOTE: Colour added to image to highlight carbide.
Back Drag

Equipped with a steel edge on the back drag, this option is ideal for back dragging away from doors and loading docks for an even cleaner finish. Edges are drilled for either rubber or steel optional bolt-on cutting edges.
3PH Rear Pull Mount

Ideal for cleaning away from doors and loading docks, utilize your pusher as a pull unit.
Lateral Float

Allows blade to follow ground contours for better clearing performance.
Snowblade Marker

Add this to your blade for better visibility and blade position awareness.
Poly Bolt-On Endplate Runner

Recommended for use with the rubber cutting edge option, helps prevent surface damage.
Rubber Cutting Edge

The optional rubber cutting edge is available for select models. Standard on SP3500R models.
Edge Flex Models

Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
