Overview

The Snow Basket is a large capacity bucket designed for machines up to 20,000 lbs. operating weight, to efficiently relocate large volumes of stacked snow. With a skeleton design, bucket weight is reduced, to boost your machine’s capacity, and water can flow out to further ensure every load has the maximum snow payload possible. Clean out is also enhanced with the open design, reducing the suction often associated with dumping wet snow.

Image of H L A swoop icon

Bucket
Image of H L A swoop icon

Broom

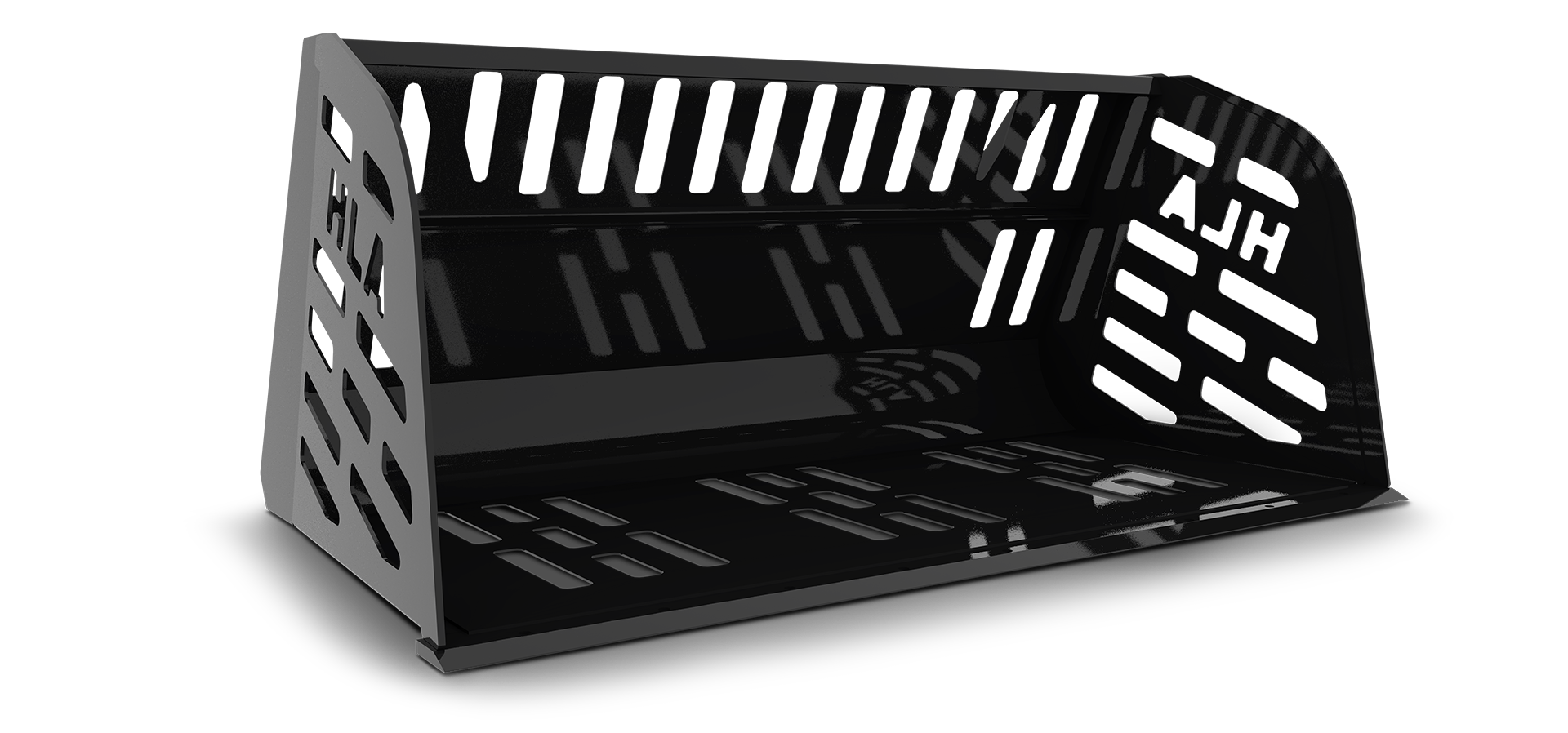

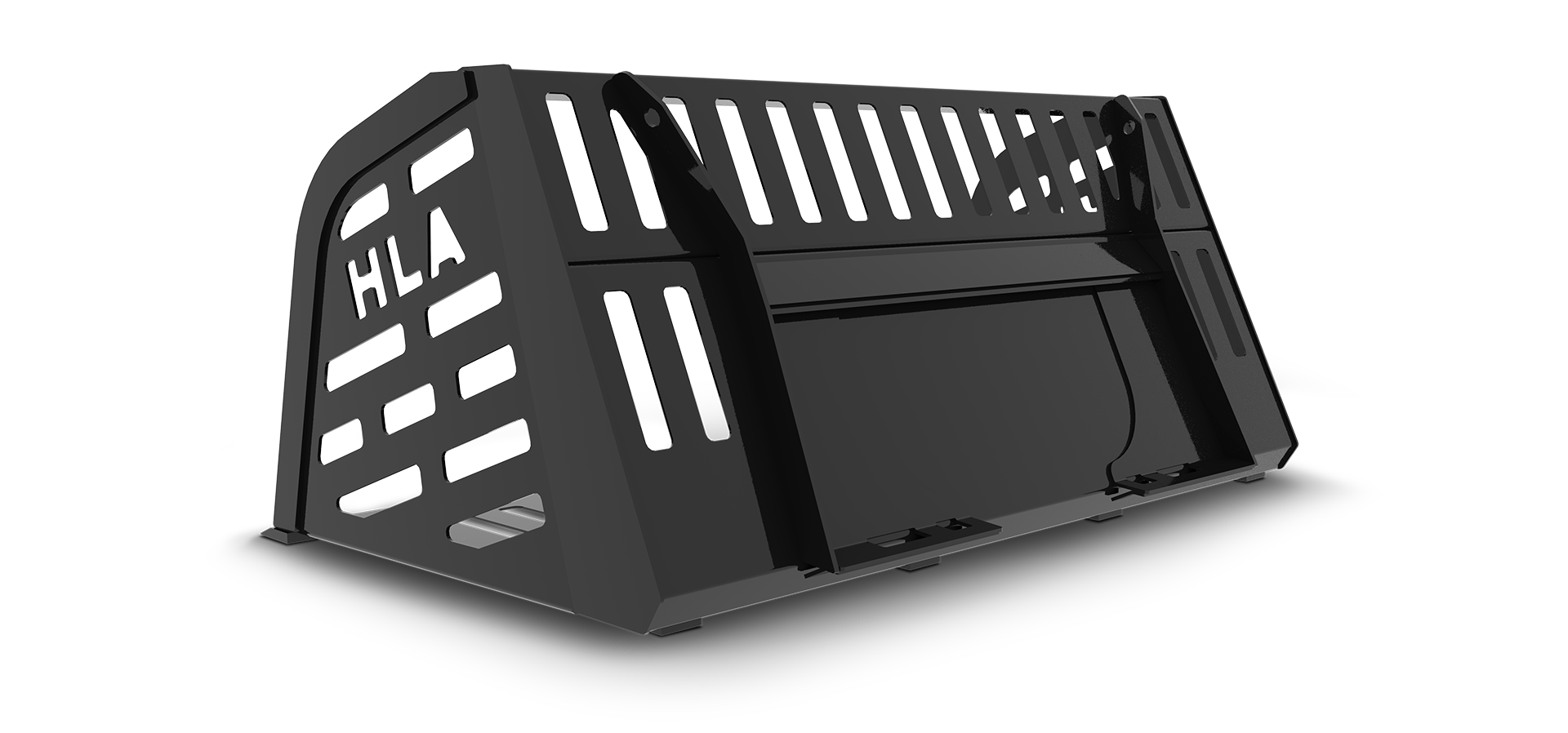

Snow Basket

The Snow Basket is a large capacity bucket designed for machines up to 20,000 lbs. operating weight, to efficiently relocate large volumes of stacked snow. With a skeleton design, bucket weight is reduced, to boost your machine’s capacity, and water can flow out to further ensure every load has the maximum snow payload possible. Clean out is also enhanced with the open design, reducing the suction often associated with dumping wet snow.

Specifications

PART# NAME INSIDE WIDTH (IN.) STRUCK CAP. (CU. FT.) SAE HEAPED CAP. (CU. FT.) APPROX. WEIGHT (LBS.)
SBSB60 60" HV Snow Basket 60 23.7 28.4 575
SBSB66 66" HV Snow Basket 66 25.5 30.9 605
SBSB72 72" HV Snow Basket 72 27.5 33.6 635
SBSB78 78" HV Snow Basket 78 29.6 36.6 670
SBSB84 84" HV Snow Basket 84 31.8 39.5 705
SBSB90 90" HV Snow Basket 90 34.5 43.3 750
SBSB96 96" HV Snow Basket 96 36.8 46.4 785
SBSB108 108" HV Snow Basket 108 42.5 54.6 870
SBSB120 120" HV Snow Basket 120 49.2 64.2 970

Features

More +
  • Skeletal Design Feature

    Skeletal Design

    Designed to provide excellent visibility and drainage.

  • Tapered Endplates Feature

    Tapered Endplates

    Tapered endplate design provides better release of materials.

  • High Volume Feature

    High Volume

    Tall rounded endplates provide increased bucket capacity.

  • 39 Inches Deep and 31 Inches High Feature

    39" deep, 31" high

  • Recommended for 50 to 125 Horsepower Feature

    Recommended for 50-125 HP

  • Drilled for Standaqrd Bolt-On Cutting Edge Feature

    Drilled for Standard Bolt-On Cutting Edge
