SB2000DM
SB3QDM
Overview
The HLA Quick Attach Snow Blade Mount is securely connected to both the front and rear of your tractor. Relying on the rear of the mount, the force is pushed through the drawbar from the front of the mount providing incredible pushing strength. Also using parallel linkage, you can rest assured that the blade will always remain parallel to the ground whether it’s raised for stacking snow or at full angle.
The quick release design relies on front and rear adapter brackets fitted to the tractors chassis. With the hydraulics connected, down pressure on the blade allows you to raise the quick attach aligning it with the front bracket. Once engaged reversing the pressure raises the rear of the quick attach locking it into the rear bracket.
Available for most makes, the undercarriage mount includes all hardware, hose kits and electro - hydraulic remote kit allowing for easy installation.SB4QDM
SB5QDM
Change View

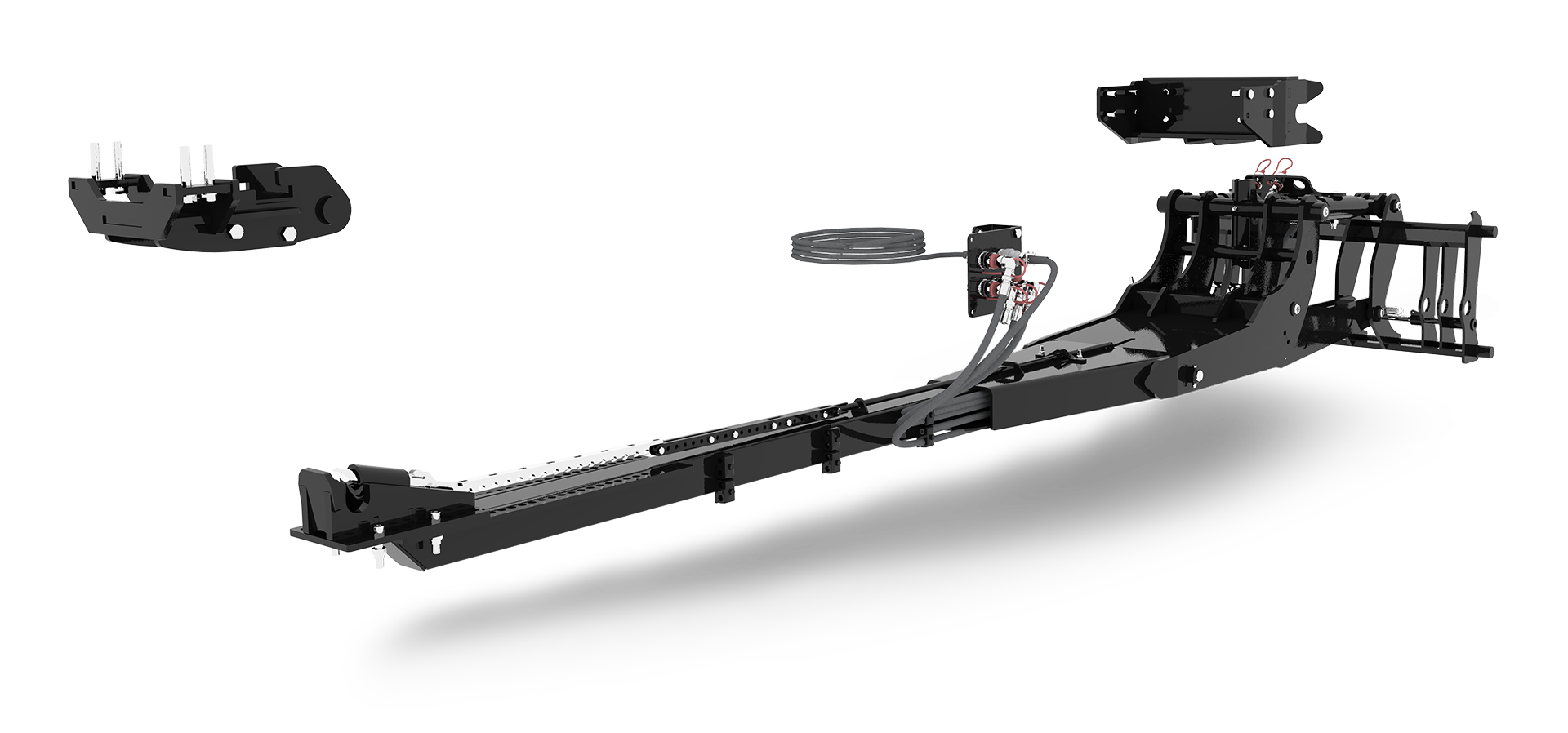

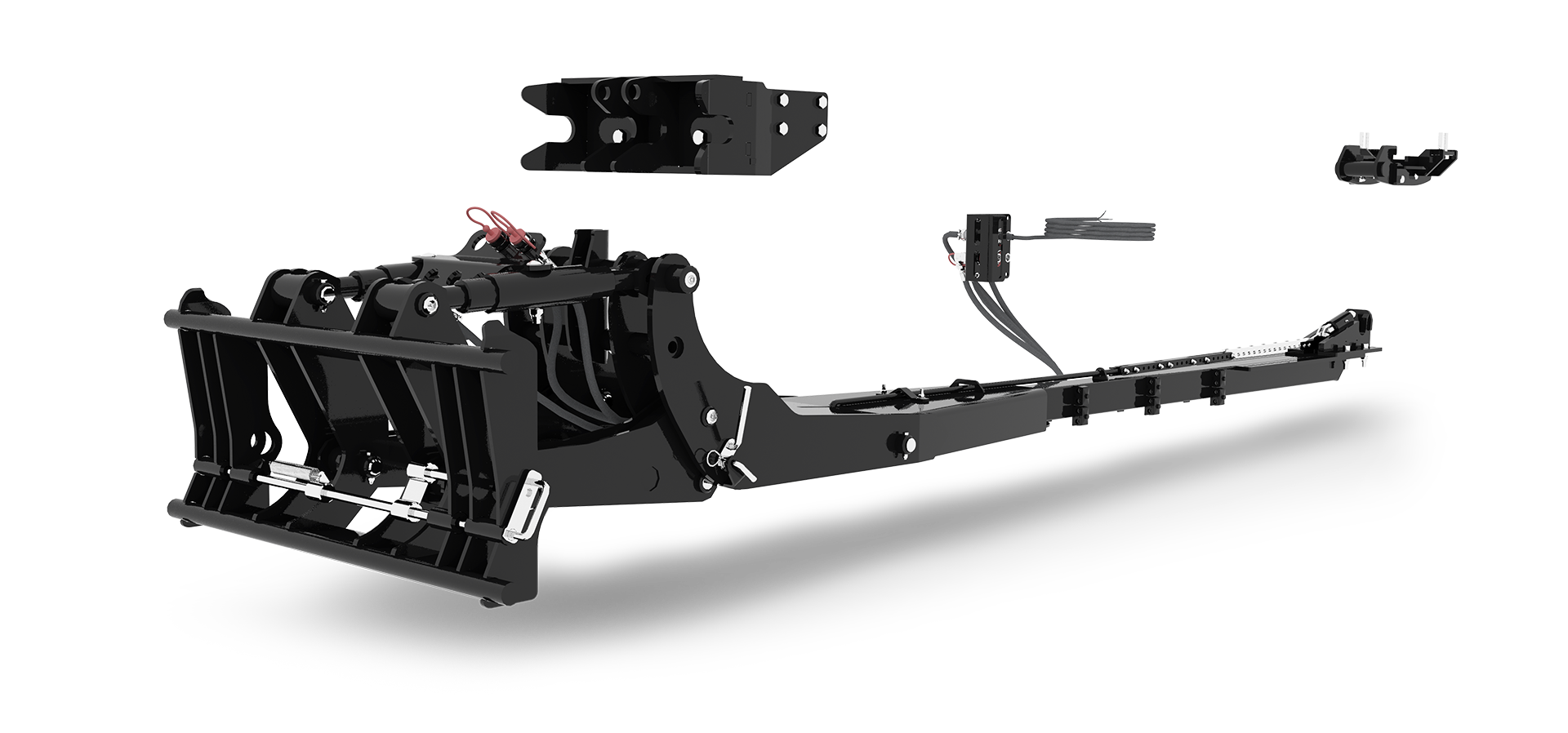

SB3QDM Quick Attach Snow Blade Mount
The HLA Quick Attach Snow Blade Mount is securely connected to both the front and rear of your tractor. Relying on the rear of the mount, the force is pushed through the drawbar from the front of the mount providing incredible pushing strength. Also using parallel linkage, you can rest assured that the blade will always remain parallel to the ground whether it’s raised for stacking snow or at full angle.
The quick release design relies on front and rear adapter brackets fitted to the tractors chassis. With the hydraulics connected, down pressure on the blade allows you to raise the quick attach aligning it with the front bracket. Once engaged reversing the pressure raises the rear of the quick attach locking it into the rear bracket.
Available for most makes, the undercarriage mount includes all hardware, hose kits and electro - hydraulic remote kit allowing for easy installation.Specifications
Model Part # Weight (lbs.) SB3QDM Quick Attach Snow Blade Mount less Mount Kit SB3QDMQF 1,030 SB3QDM Quick Attach Undermount Mount Kit Contact HLA for Tractor Listing 130 Optional Hydraulic Top Link Kit for SB3QDMQF SB3QDMHTLK 45 Optional Factory Blade Installation - SB3QDM SB3000IN Power & Control
-
Heavy Duty Parallel Linkage
Heavy duty parallel linkage for optimum lifting height.
-
AO600 Euro Quick Fit Plate
AO600 Euro quick fit plate for attachments is standard.
-
Mounting Hardware
Package includes all mounting hardware and hose kits.
-
Electro-Hydraulic Harness
Electro-hydraulic harness kit is standard.
-
Mount Kits
Mount kits available for most makes, call dealer for details.
-
Soft Ride Accumulator
Soft ride accumulator standard.
Quick Release System
-
Quick Release System
Quick release system allows for removal of the complete mount and snowblade in minutes.
Parallel Vertical Lift
-
Remains Parallel
Blade remains parallel to ground even at full angle and raised.
-
Extra Height
Extra height for piling snow.
