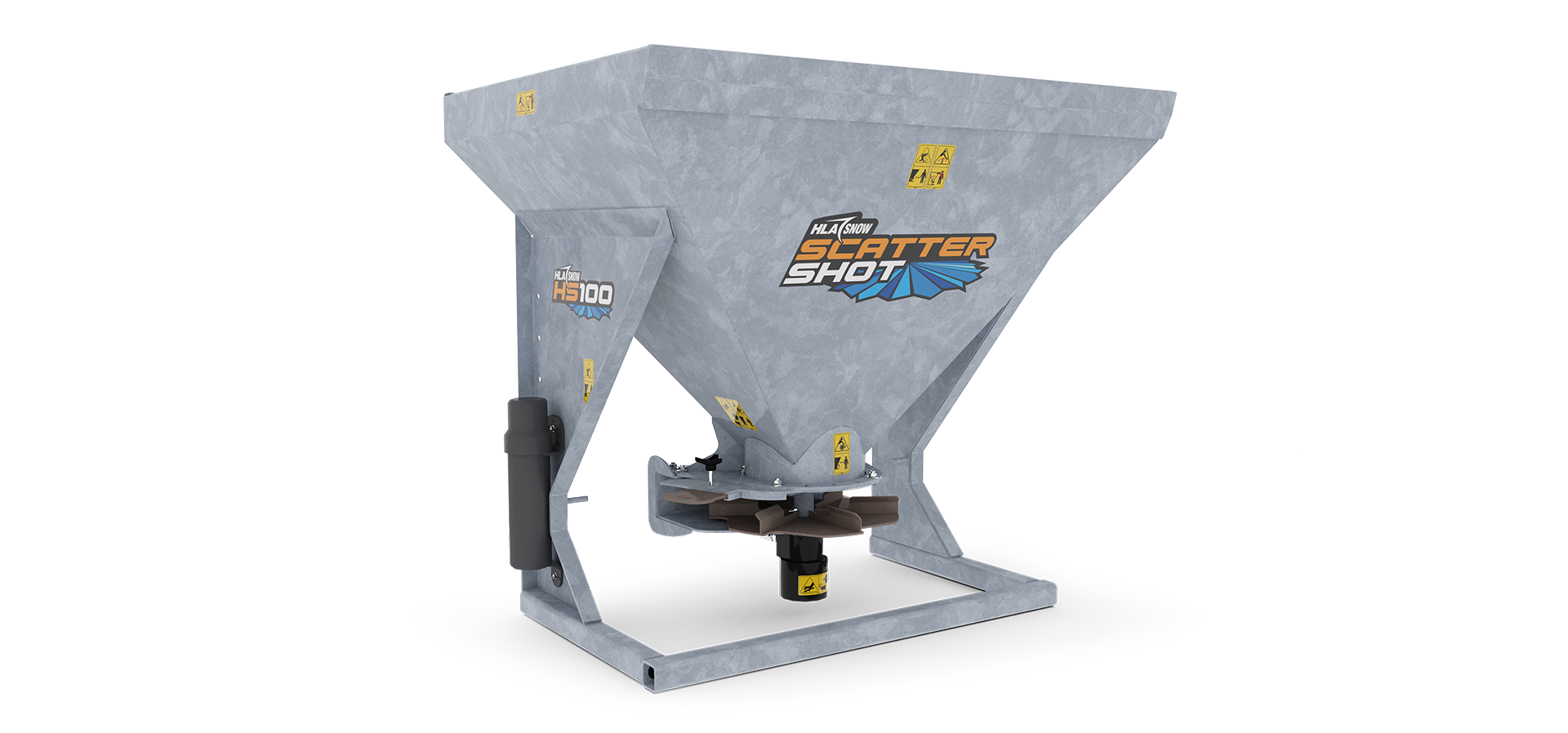

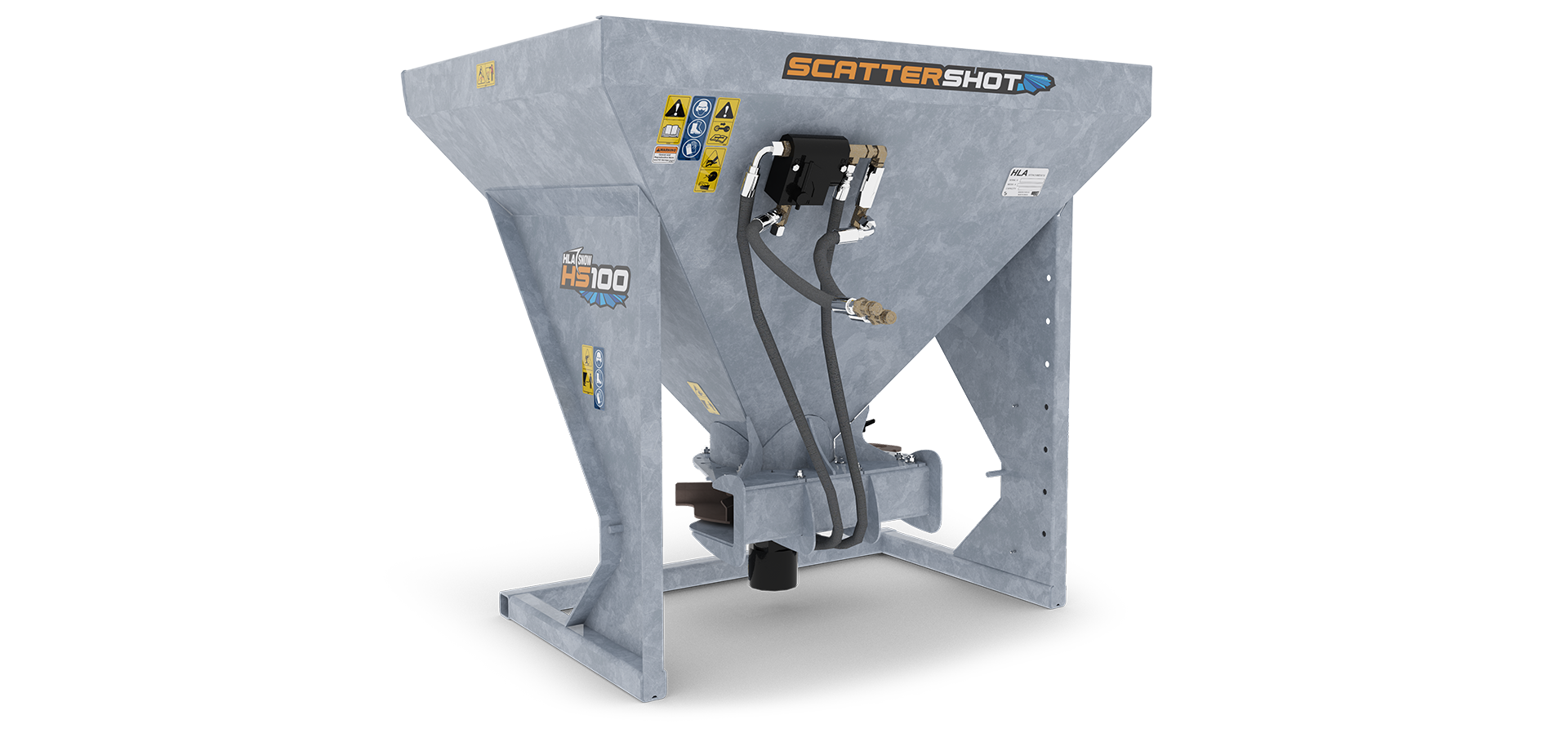

HS100
HS200
HS100
Specifications
Model Self Loading Capacity Spread Width Width Height Depth Weight (lbs.) Hydraulic
(2000-3000 PSI)HS100
Skidsteer/LoaderYes 1/2 cu yd 3'-40' 48" 44" 36" 445 5-20 GPM HS1003PHC1
Hydraulic Drive, CAT 1 3PHNo 1/2 cu yd 3'-40' 48" 44" 36" 410 5-20 GPM HS100PTO3PHC1
PTO Drive, CAT 1 3PHNo 1/2 cu yd 3'-40' 48" 44" 36" 420 N/A HS100H3PHC1 *
Hydraulic Drive, CAT 1 3PH, Hydraulic TiltYes 1/2 cu yd 3'-40' 48" 44" 36" 505 5-20 GPM Features
-
Hydraulic Spinners
Hydraulically controlled, the spinners spread the material from the hopper.
-
Spinner Speed Control
The speed control adjusts the speed of the hydraulic spinners, affecting the broadcast distance to suit your needs.
-
Manual Flow Rate Adjustment Slider
These sliders allow for the manual adjustment of material flowing from the hopper.
-
Floating Agitator
The floating agitators reduce bridging, ensuring that a consistent flow of material is broadcasted.
-
13" Quick Attach Spacer Included with Skid Steer
The 13" Quick Attach Spacer included with Skid Steer Kit increases the amount of space between the skid loader and the ScatterShot allowing the operator to easily get in and out of the skid loader while the ScatterShot is still attached.
-
Includes Hydraulic Hoses and Couplers
Options
-
Hydraulic Shut-Off Gate
Using the hydraulic controls, shut off the flow of material to stop broadcasting.
-
Drop Spreading Shield - 36" Wide
Reducing the amount of sand or salt landing on undesired locations, the drop shield limits the Scattershot spread to the width of a sidewalk.
-
Hopper Cover - Black Vinyl with Draw String
Ensures minimal loss of material during transport and keeps snow and rain out of the hopper.
