Overview

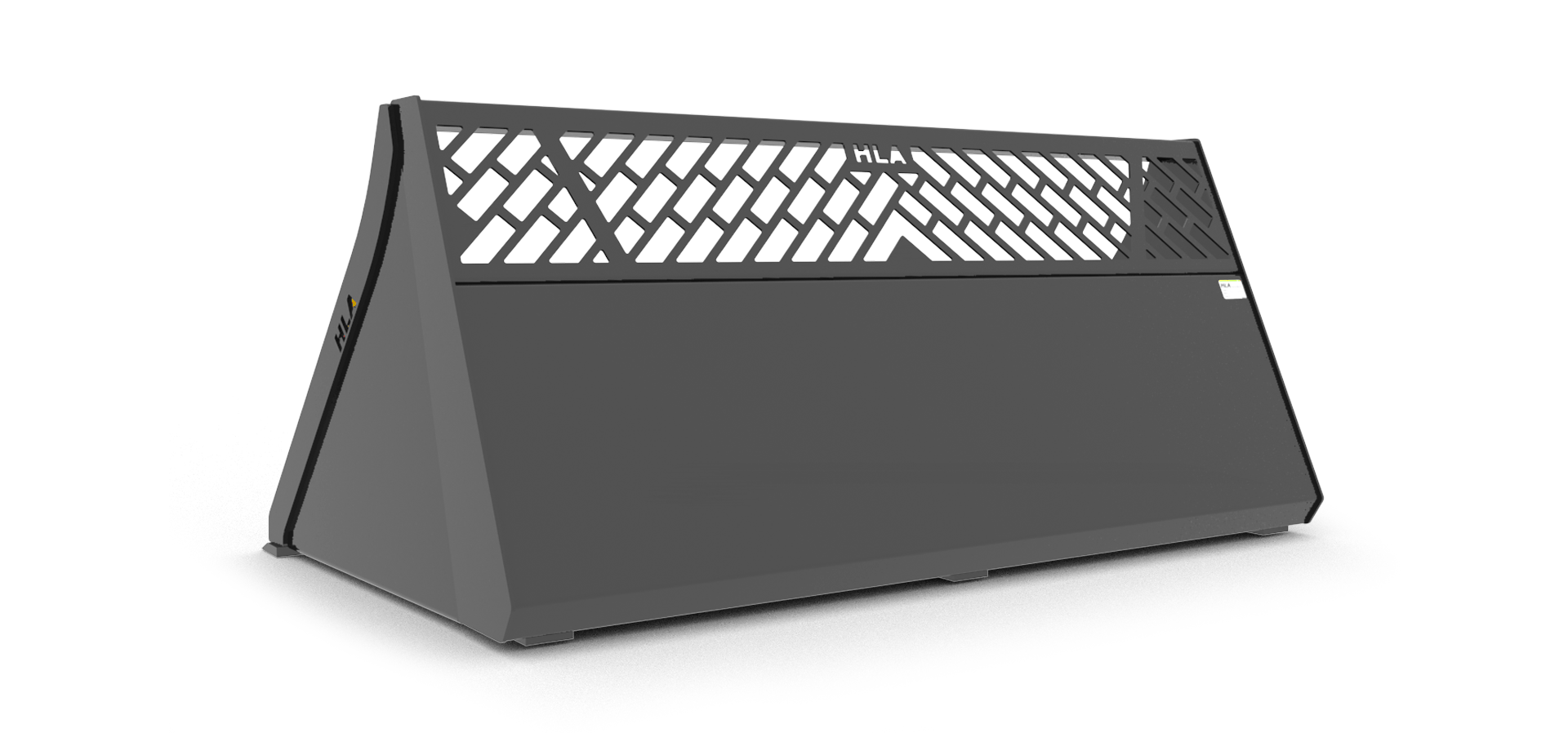

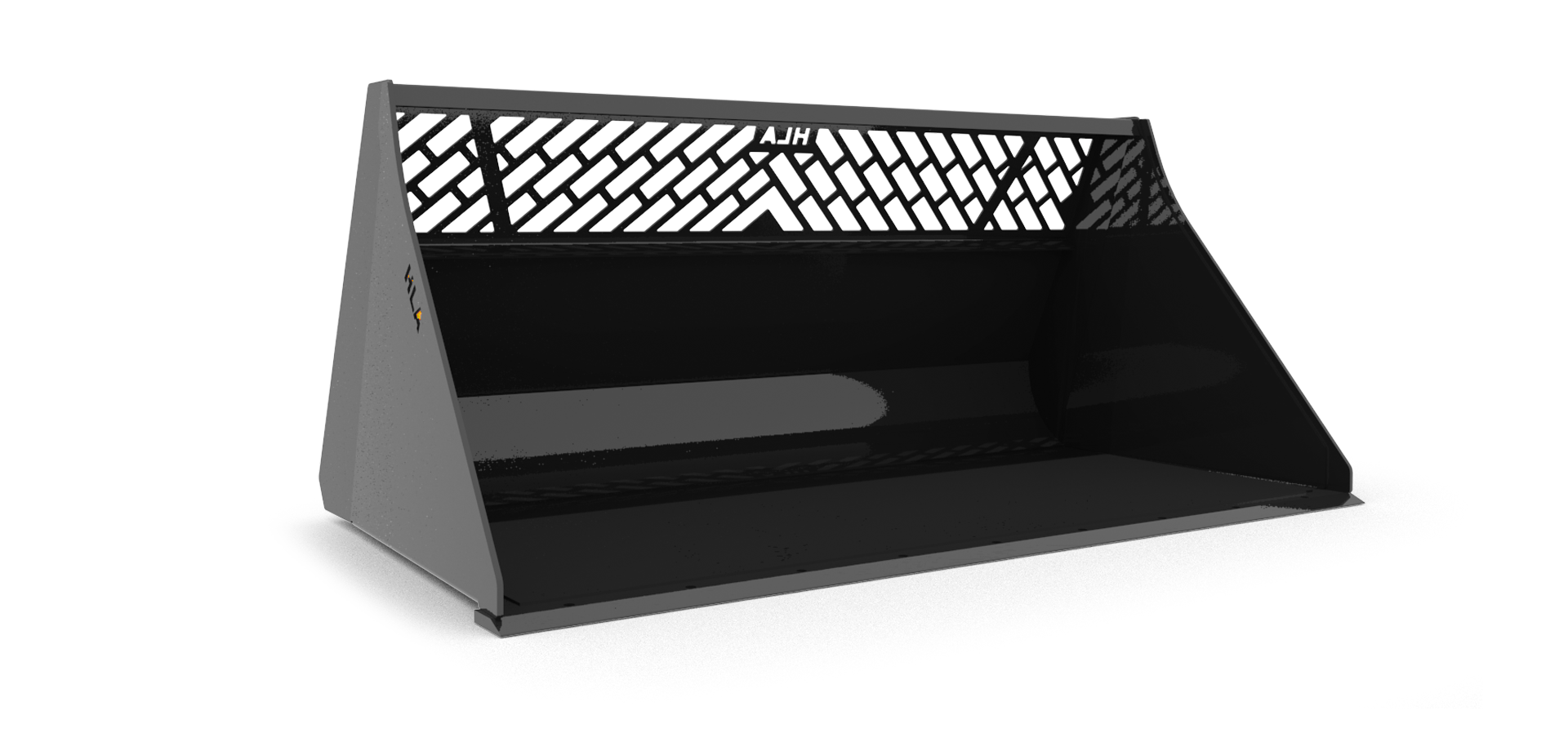

The Snow Bucket is a large capacity bucket designed for machines up to 20,000 lbs. operating weight, to efficiently move light material like snow, mulch, and chicken litter. A laser cut visibility screen in the upper back panel allows the operator to see the cutting edge without sacrificing capacity.

Image of H L A swoop icon

Broom

Snow Bucket

The Snow Bucket is a large capacity bucket designed for machines up to 20,000 lbs. operating weight, to efficiently move light material like snow, mulch, and chicken litter. A laser cut visibility screen in the upper back panel allows the operator to see the cutting edge without sacrificing capacity.

Specifications

PART# NAME INSIDE WIDTH (IN.) STRUCK CAP. (CU. FT.) SAE HEAPED CAP. (CU. FT.) APPROX. WEIGHT (LBS.)
SBSN60BO500 60" SKIDSTEER SNOW BUCKET 60 23.6 29 575
SBSN66BO500 66" SKIDSTEER SNOW BUCKET 66 25.9 32 610
SBSN72BO500 72" SKIDSTEER SNOW BUCKET 72 28.3 35.1 645
SBSN78BO500 78" SKIDSTEER SNOW BUCKET 78 30.7 38.1 690
SBSN84BO500 84" SKIDSTEER SNOW BUCKET 84 33 41.2 725
SBSN90BO500 90" SKIDSTEER SNOW BUCKET 90 35.4 44.2 775
SBSN96BO500 96" SKIDSTEER SNOW BUCKET 96 37.7 47.3 805
SBSN108BO500 108" SKIDSTEER SNOW BUCKET 108 42.5 53.3 940
SBSN120BO500 120" SKIDSTEER SNOW BUCKET 120 47.2 59.4 1,010

Features

More +
  • Heavy Duty Grating Feature

    Heavy Duty Grating

    Allows extra visibility for the operator.

  • Recommended for 50 to 125 Horsepower Feature

    Recommended for 50-125 HP

  • Reinforced Top Lip Feature

    Reinforced Top Lip

  • Bevelled Cutting Edge Feature

    3/4 x 4 Bevelled Cutting Edge

  • 3 16th Inch Material, 1 16th Inch End Plates Feature

    3/16" Material, 1/4" End Plates

  • 39 Inches Deep and 31 Inches High Feature

    39" deep, 31" high

  • Reinforced Round Back Feature

    Reinforced Round Back

    Reinforced round back and end plates for strength, easy filling & clean out.

  • Flat Top Feature

    Flat Top

    The flat top acts as a level indicator.

  • Tapered Endplates Feature

    Tapered Endplates

    Tapered endplate design provides better release of materials.

  • Drilled for Standaqrd Bolt-On Cutting Edge Feature

    Drilled for Standard Bolt-On Cutting Edge
