Overview
The 5505 Series Snow Pusher is sized for wheel loaders and ag tractors, from 22,000 to 40,000 lbs. operating weight. With deeper end plates than the 5500 Series, this pusher is ideal for large volume commercial snow clearing.
6500
⯈

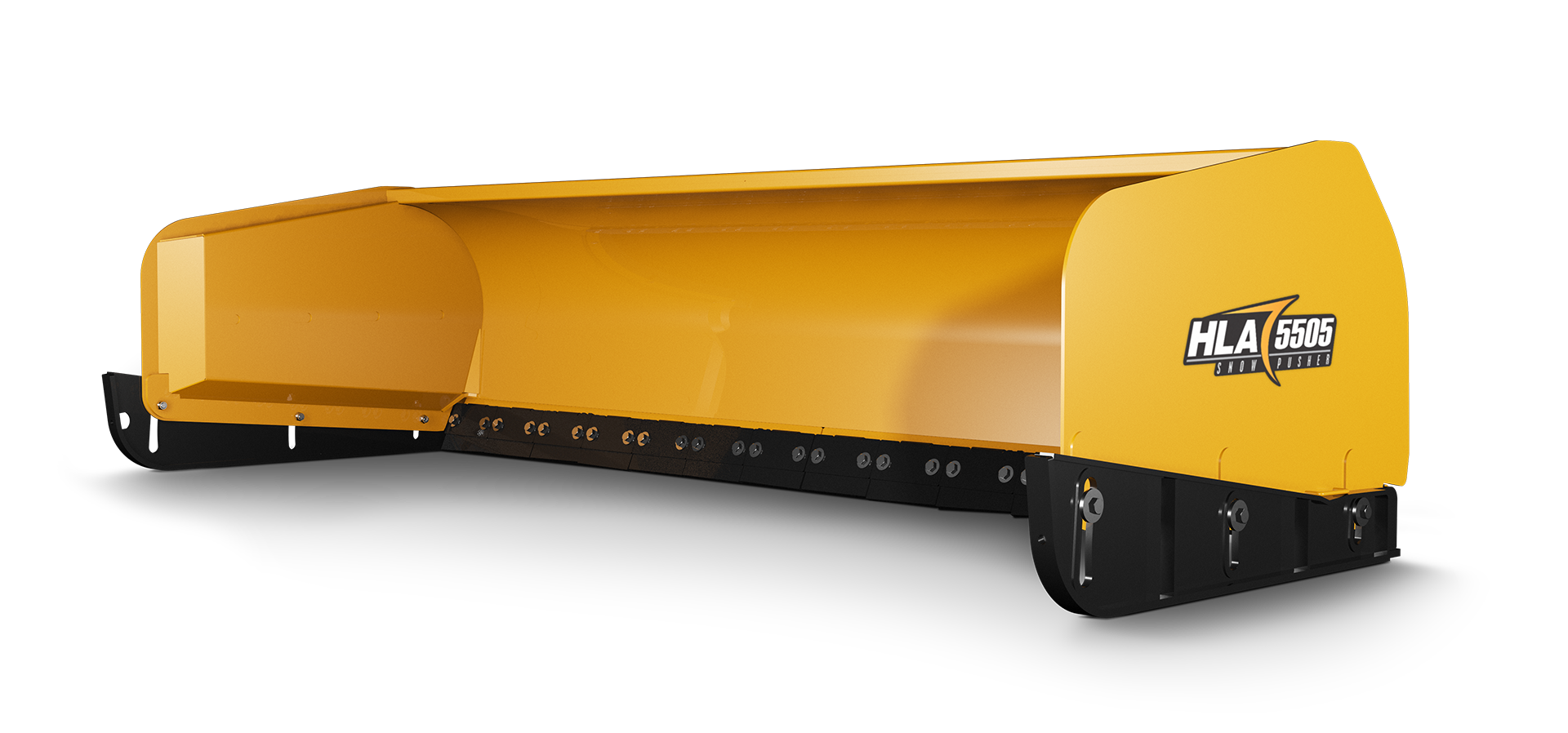

5505 SnowPusher
The 5505 Series Snow Pusher is sized for wheel loaders and ag tractors, from 22,000 to 40,000 lbs. operating weight. With deeper end plates than the 5500 Series, this pusher is ideal for large volume commercial snow clearing.
Specifications
Part # Approx. Weight (LBS.) Length Depth Mouldboard Height Max Operating Weight (LBS.) SP550510 2,660 120" 60" 42" 40,000 SP550512 2,870 144" 60" 42" 40,000 SP550514 3,135 168" 60" 42" 40,000 SP550516 3,425 192" 60" 42" 40,000 SP550518 3,805 216" 60" 42" 40,000 Features
-
2 Year Warranty
Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
-
Double Sidewall
Welded double sidewalls eliminates bulky braces and reduces material build-up, leaving only smooth clean lines inside.
-
Replaceable, Reversible Cutting Edge
Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
-
High Tensile AR400 Floating Steel Skidbars
-
Spring Trip Cutting Edge
Allows cutting edge to trip back if struck by hidden object limiting damage.
Options
-
AR400 Large Pad Skid Shoe
Large pad style skid shoes for better floatation on soft surfaces
NOTE: Available on non Edge Flex models.
-
Carbide Cutting Edges
Carbide edges are designed for heavy commercial use. This non-reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
NOTE: Colour added to image to highlight carbide.
-
Rubber Cutting Edge
The optional rubber cutting edge is available for select models.
-
Cast Highway Skid Shoes
Optional on 4500, 5500, 5505, and 6500 snow pushers without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
-
Snowblade Marker
Add this to your blade for better visibility and blade position awareness.
-
Lateral Float
Allows blade to follow ground contours for better clearing performance.
-
Edge Flex Models
Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
