Overview

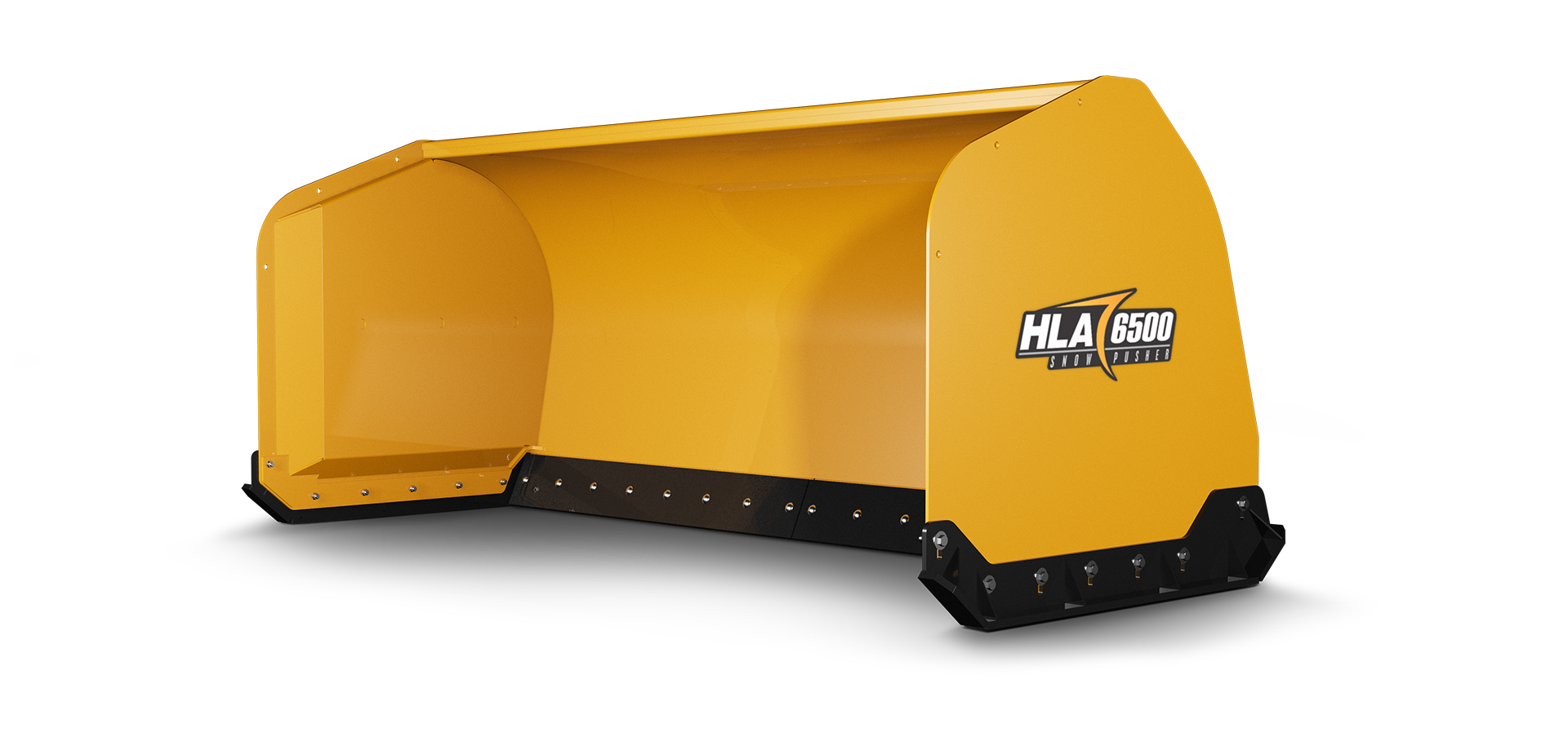

The 6500 Series Snow Pusher is sized for wheel loaders from 35,000 to 60,000 lbs. operating weight. With 48” deep end plates, this pusher is ideal for large volume commercial snow clearing.

6500 SnowPusher

The 6500 Series Snow Pusher is sized for wheel loaders from 35,000 to 60,000 lbs. operating weight. With 48” deep end plates, this pusher is ideal for large volume commercial snow clearing.

Specifications

Part #	Approx. Weight (LBS.)	Depth	Length	Mouldboard Height	Max Operating Weight (LBS.)
SP650010	2,920	48"	120"	53"	60,000
SP650012	3,230	48"	144"	53"	60,000
SP650014	3,545	48"	168"	53"	60,000
SP650016	3,940	48"	192"	53"	60,000
SP650018	4,260	48"	216"	53"	60,000
SP650020	4,825	48"	240"	53"	60,000

Features

More +

2 Year Warranty

Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
Double Sidewall

Welded double sidewalls eliminates bulky braces and reduces material build-up, leaving only smooth clean lines inside.
Replaceable, Reversible Cutting Edge

Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
High Tensile AR400 Adjustable Steel Skidbars

AR400 high tensile skid shoes for optimum performance and prolonged cutting edge life.
Spring Trip Cutting Edge

Allows cutting edge to trip back if struck by hidden object limiting damage.

Options

More +

AR400 Large Pad Skid Shoe

Large pad style skid shoes for better floatation on soft surfaces
NOTE: Available on non Edge Flex models.
Carbide Cutting Edges

Carbide edges are designed for heavy commercial use. This non-reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
NOTE: Colour added to image to highlight carbide.
Rubber Cutting Edge

The optional rubber cutting edge is available for select models.
Cast Highway Skid Shoes

Optional on 4500, 5500, 5505, and 6500 snow pushers without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
Snowblade Marker

Add this to your blade for better visibility and blade position awareness.
Lateral Float

Allows blade to follow ground contours for better clearing performance.
Edge Flex Models

Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
