Overview

The 6000 Series Angle Blade is sized for wheel loaders from 35,000 to 60,000 lbs. operating weight. Featuring hydraulic angle, this blade is ideal for commercial snow clearing.

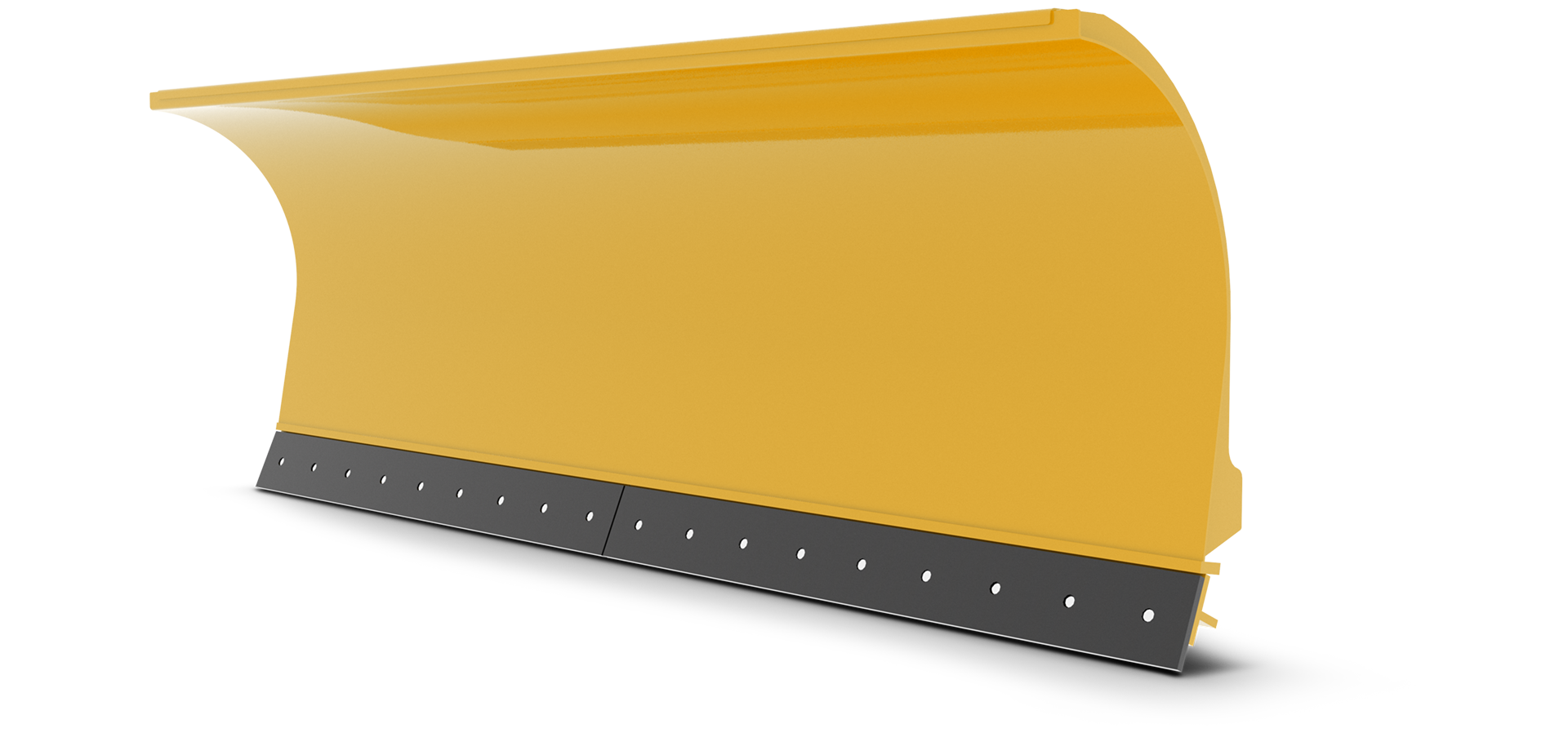

6000 SnowBlade

The 6000 Series Angle Blade is sized for wheel loaders from 35,000 to 60,000 lbs. operating weight. Featuring hydraulic angle, this blade is ideal for commercial snow clearing.

Specifications

Part # Approx. Weight (LBS.) Length (in.) Overall Road Width (Angled) (in.) Snow Clearing Width (Angled) (in.) Mouldboard Height Max Operating Weight (LBS.)
SB600010 2,735 120 112 98.5 53" 60,000
SB600012 3,060 144 132 118 53" 60,000
SB600014 3,335 168 152 138 53" 60,000
SB600016 3,785 192 172 158 53" 60,000
SB600018 4,090 216 192 178 53" 60,000
SB600020 4,445 240 212 198 53" 60,000

Features

More +
  • 2 Year Warranty Feature

    2 Year Warranty

    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.

  • 35° Angle with Crossover Relief Valve Protection Feature

    35° Angle with Crossover Relief Valve Protection

    Relief Valve Feature Video Link

    Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.

  • Lateral Float Feature

    Lateral Float

    Oscillating Mount Feature Video Link

    Allows blade to follow ground contours for better clearing performance.

  • Mouldboard Profile Feature

    Mouldboard Profile

    Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.

  • Nitrate Rods on Angle Cylinders

    Nitrate Rods on Angle Cylinders

    Nitrate rods on angle cylinders.

  • Replaceable, Reversible Cutting Edge Feature

    Replaceable, Reversible Cutting Edge

    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.

  • Spring Trip Cutting Edge Feature

    Spring Trip Cutting Edge

    Spring Trip Feature Video Link

    Allows cutting edge to trip back if struck by hidden object limiting damage.

  • Floating Blade Hinge Feature

    Floating Blade Hinge

    Floating Blade Hinge Option Video Link

    This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the attachment carrier forward.

  • Cast Highway Skid Shoes Option

    Cast Highway Skid Shoes

    Standard on 4000, 5000, 6000 snow blades without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.

Options

More +
