SB3QDM

Quick Attach Snow Blade Mount

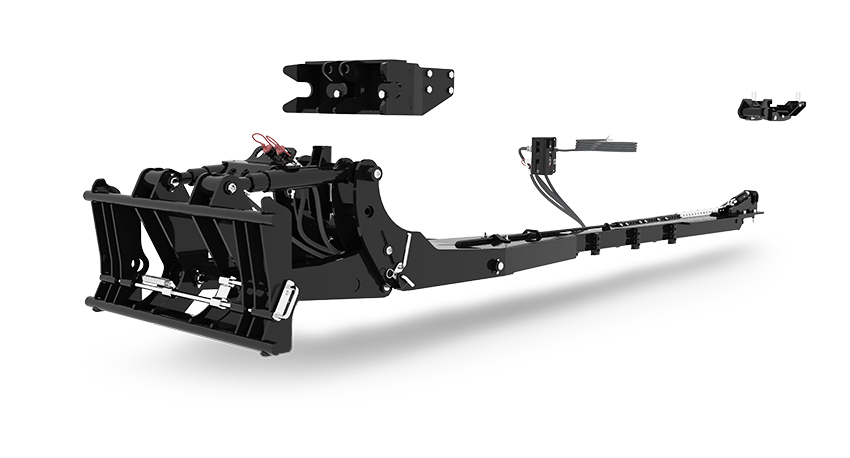

SB3QDM Quick Attach Snow Blade Mount

Power & Control

  • Heavy duty parallel linkage for optimum lifting height
  • AO600 Euro quick fit plate for attachments is standard
  • Package includes all mounting hardware and hose kits
  • Electro-hydraulic harness kit is standard.
  • Mount kits available for most makes, call dealer for details
  • Soft ride accumulator standard

Quick Release System

  • Quick Release system allows for removal of the complete mount and snowblade in minutes

Parallel Vertical Lift

  • Blade remains parallel to ground even at full angle and raised
  • Extra height for piling snow

The HLA Quick Attach Snow Blade Mount is securely connected to both the front and rear of your tractor. Relying on the rear of the mount, the force is pushed through the drawbar from the front of the mount providing incredible pushing strength. Also using parallel linkage, you can rest assured that the blade will always remain parallel to the ground whether it’s raised for stacking snow or at full angle.

The quick release design relies on front and rear adapter brackets fitted to the tractors chassis. With the hydraulics connected, down pressure on the blade allows you to raise the quick attach aligning it with the front bracket. Once engaged reversing the pressure raises the rear of the quick attach locking it into the rear bracket.

Available for most makes, the undercarriage mount includes all hardware, hose kits and electro - hydraulic remote kit allowing for easy installation.

Specifications

Model Part # Weight (lbs.)
SB3QDM Quick Attach Snow Blade Mount less Mount Kit SB3QDMQF 1,030
SB3QDM Quick Attach Undermount Mount Kit Contact HLA for Tractor Listing 130
Optional Hydraulic Top Link Kit for SB3QDMQF SB3QDMHTLK 45
Optional Factory Blade Installation - SB3QDM SB3000IN
